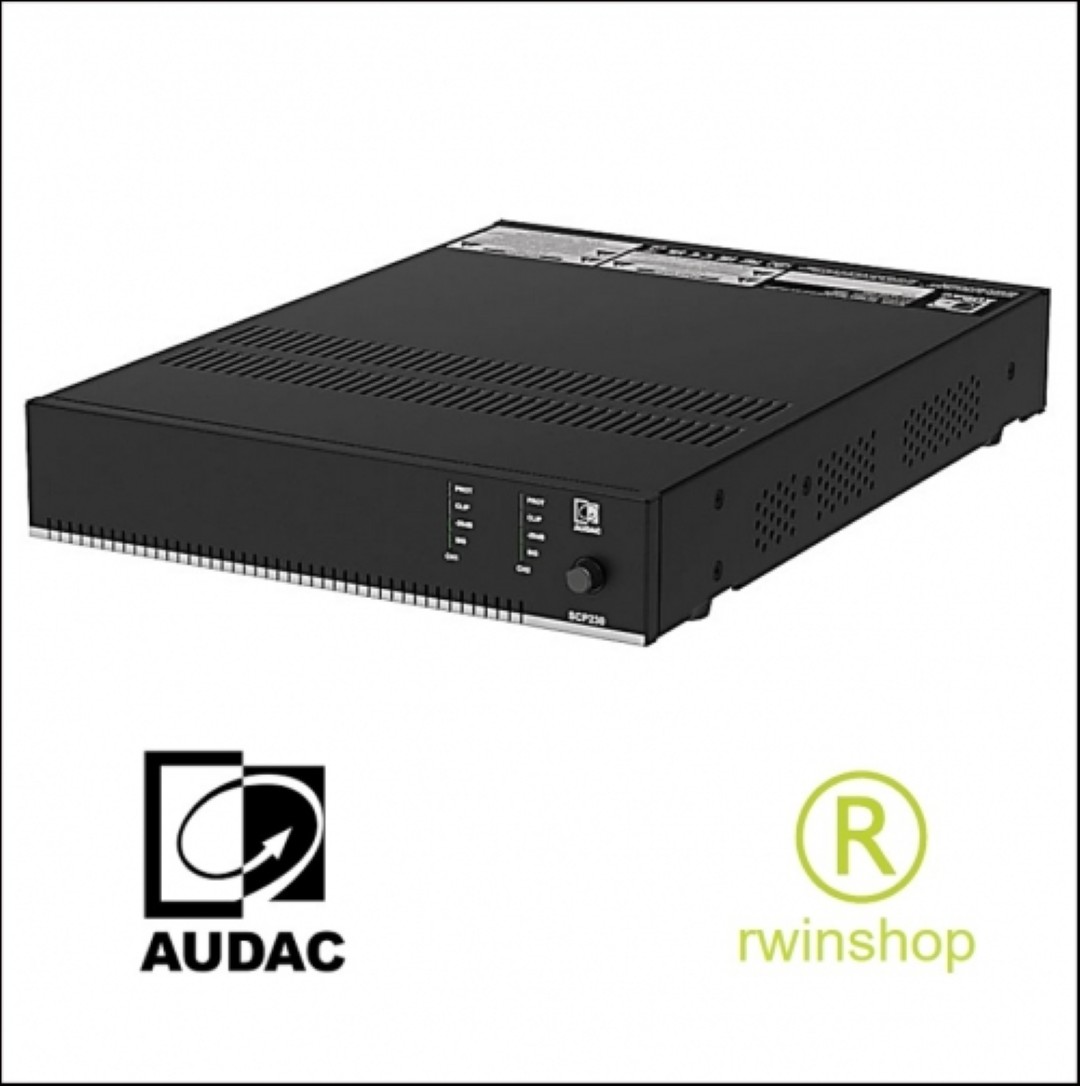

Audac SCP230 eindversterker 2x300watt 4ohm of 600watt bij 100volt half 19inch

Artikelnummer: SCP230
Dit artikel is momenteel niet leverbaar.

Product omschrijving


Specificaties

Technische specificaties
Systeem specificaties
RMS/AES-vermogen bij 4 Ω Stereo 2 x 300 W
@ 8 Ω Stereo 2 x 150 W
@ 70/100 V Brug 600 W
Frequentiebereik (± 3 dB) 20 Hz - 20 kHz
THD+N (@ 1 kHz) 0,05%
Signaal / Ruis > 90 dB

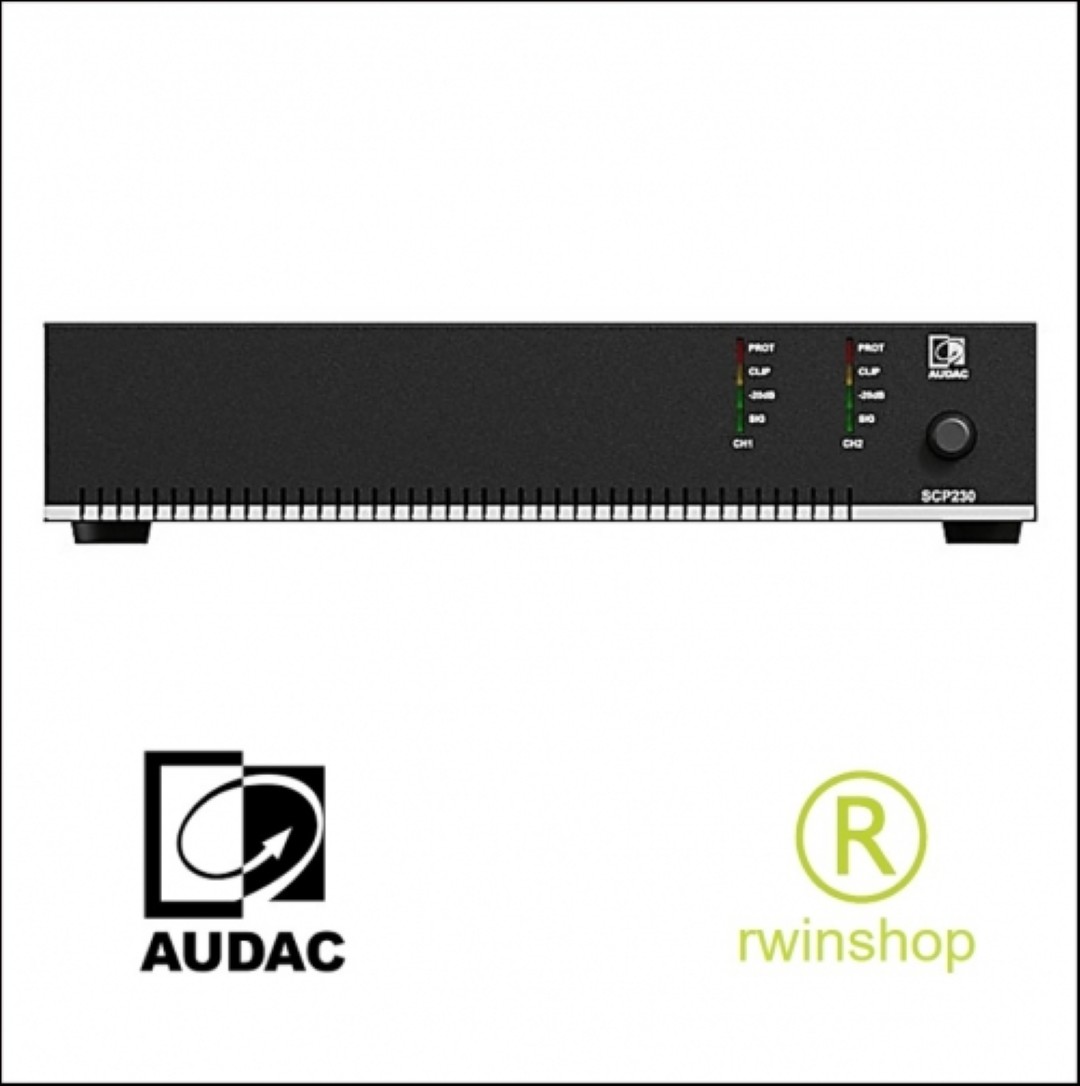

Indicatoren VU LED-balk (voorkant)

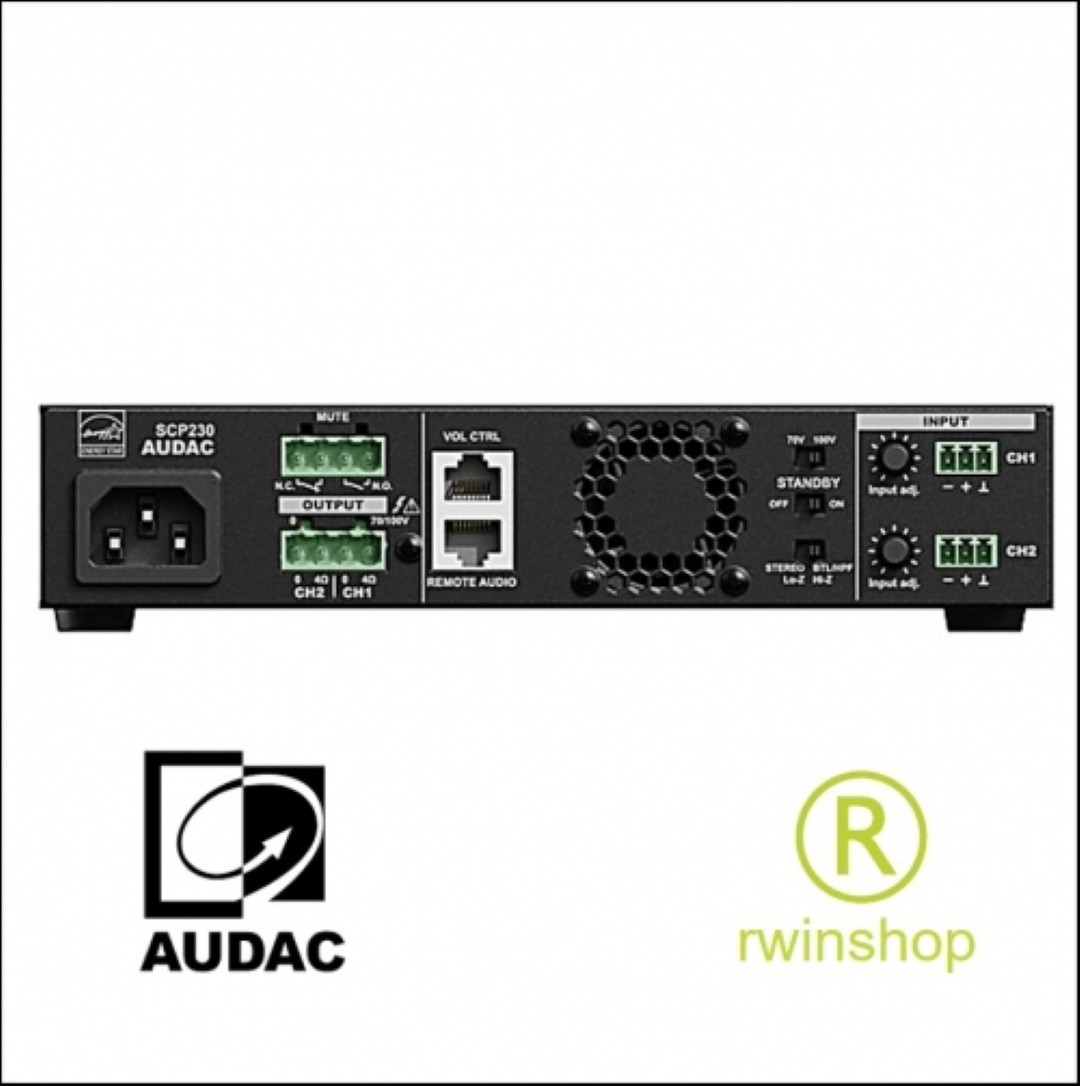

Uitgangen Spanning / Impedantie 70-100 V / 4 Ω
Connector 4-polig Euro-aansluitblok (pitch - 5,08 mm)
Ingangen Connector 3-pins Euro Terminal Block (pitch - 3,81 mm)
IEC C14-connector
Andere connector RJ45
Type 1 x externe volumeregelaar
1 x externe muurmixer
Prioriteit mute-contact
Stereo - BTL/HPF-modusconfiguratie
Power Standby-schakelaar
Voeding 100 ~ 240 V AC / 50 ~ 60 Hz
Control Gain control potentiometers (achter)
Stereo Low Z & Mono High Z-schakelaar
70/100V schakelaar
Koeling Temperatuurgestuurde ventilator
Technologie klasse-D
Producteigenschappen
Afmetingen 217,5 x 44 x 300 mm (B x H x D)
Gewicht 2,70 kg
Constructie Staal
Montage 1/2 19” / 1 HE of tafelblad
Accessoires Optioneel WP2xx Universeel wandpaneel
19-inch rekmontage-adapter

Specificaties

Artikelnummer SCP230
